Underground Coal Mining Winch Double Speed Prop-Pulling

Basic Info

Model No.: JD-1.6

Type: Electric Winch

Driven Type: Hydraulic

Certification: SGS, CE, ISO 9001

Standard: National Standards

Motor Rev: 1470 Rev/min

Motor Power: 40

Total Reduction Ratio: 32.5

Drum Size: 310*400 Mm

Additional Info

Packaging: Double Wooden Box

Transportation: Ocean,Land

Port: Qingdao,Shanghai

Product Description


Introduction of  underground mining winch

JD series of scheduling winch for flameproof for mine underground or ground load scheduling marshalling harvesters and roadway checked harvesters and other auxiliary handling in the middle. Winch using planetary gear transmission, winch has a compact structure, good rigidity, high efficiency, easy installation and moving, smooth starting, flexible operation, reliable braking, low noise characteristics.

We are China Mining Winch,Underground Mining Winch supplier & manufacturer, offer low price, high quality Electric Scrapper Winch,Mining Lifting Winch, etc.

JD series of scheduling winch is composed of motor, drum devices, brakes or hydraulic push rod, the base and cover parts.
JD series of scheduling winch by operating brake and working brake winch drum forward and stops, so as to realize the weight of the traction and stop the two kinds of working condition. In each winch in the design of the internal parts adopt rolling bearing, flexible operation.

 JD-1.6 Underground Mining Dispatching Winch Manufacturer, JD-1.6 Underground Mining Dispatching Winch Manufacturer, JD-1.6 Underground Mining Dispatching Winch Manufacturer

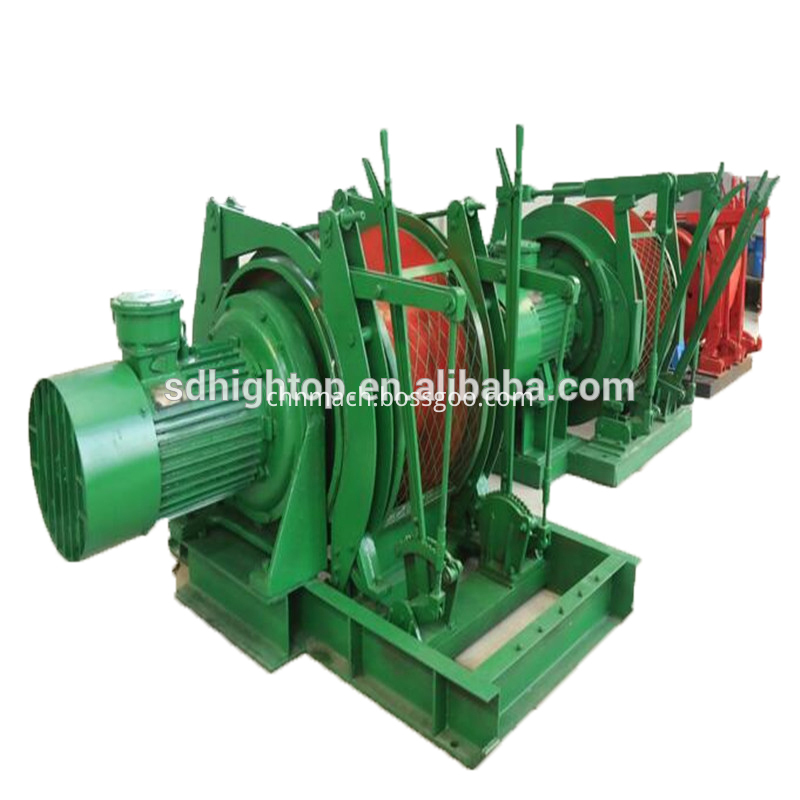

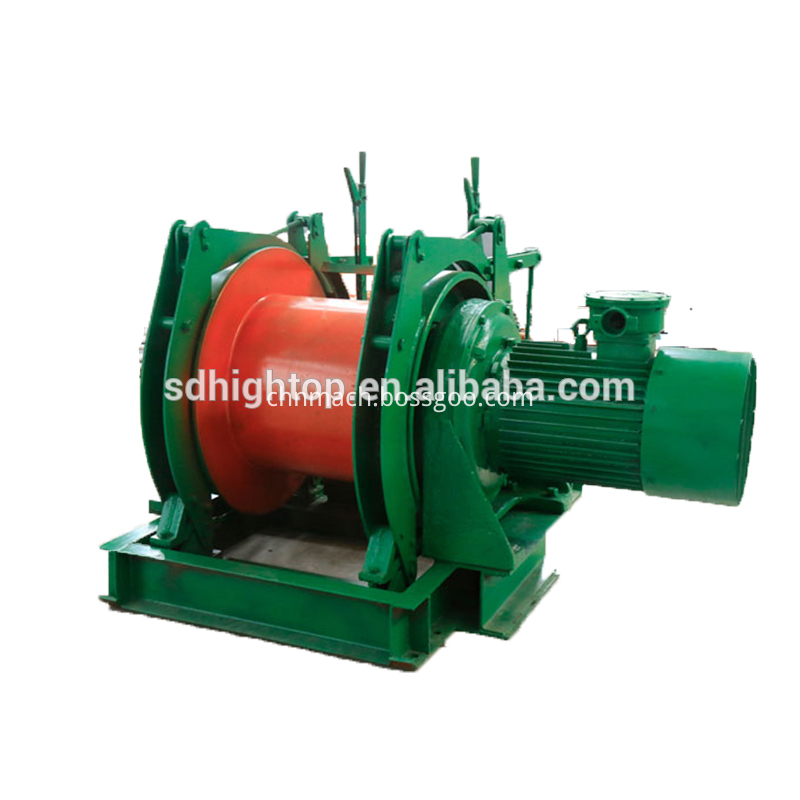

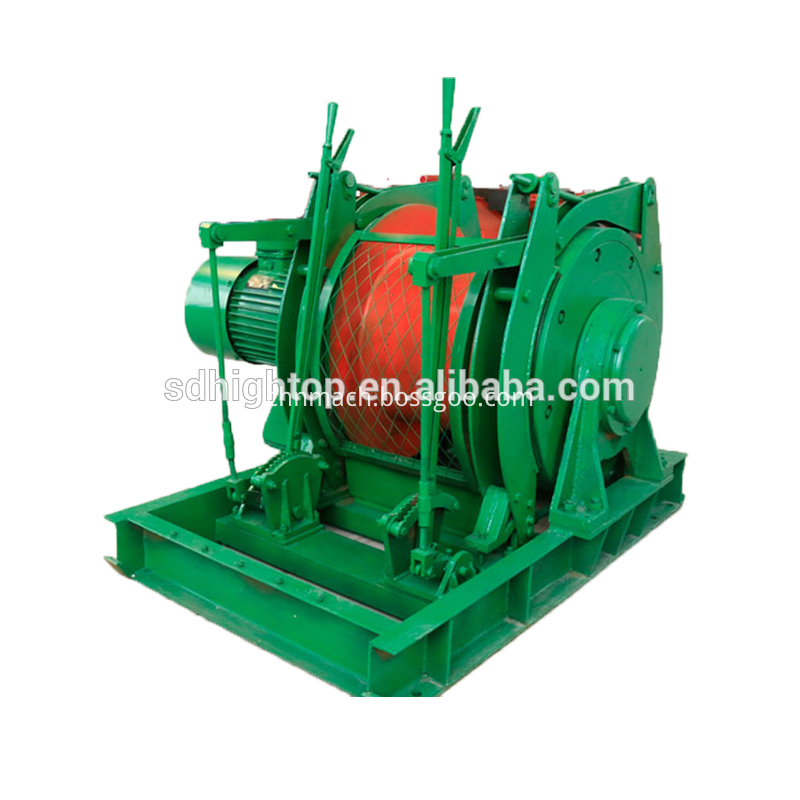

Photos of  underground mining winch



Mining Winch Prop-PullingUnderground Mining Winch


Mining Winch for PullingUnderground Coal Mining Winch
