Handheld Percussion Mining Rock Drilling Machine

Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF,FCA
Min. Order: 1 Set/Sets
Delivery Time: 5 Days

Basic Info

Model No.: Y20

Structure: Horizontal Drilling Machine

Layout: Horizontal

Controlling Mode: Artificial

Number of Shaft: 3

Hole Diameter: <50mm

Automatic Grade: Semiautomatic

Precision: Normal Precision

Certification: CE, ISO 9001

Condition: New

Color: Blue

Additional Info

Packaging: Carton Box

Productivity: 10000 Sets/Month

Brand: CNMC

Transportation: Ocean,Land,Air

Place of Origin: Shandong

Supply Ability: 10000 Sets/Month

Certificate: CE

HS Code: 8430390000

Port: Qingdao,Shanghai,Ningbo

Product Description

Introduction of Handheld Percussion Mining Rock Drilling Machine


Y20 type air-leg rock drill is mainly used in the cut construction moderate rigidity and higher rigidity of the rock, using tape water wet method of drilling, the operating structure of the type drills are concentrated on the handle, the operation is very convenient, and good mobility start fast, but gas and water linkage design, easy to use, easy maintenance.


Shandong Hightop Machinery Co., Ltd is the leader in polyurethane technology . Our company is mainly in engaged in Spray Foam Machine, Polyurethane Foaming Machine, Spray Foam Equipment, Spray Foam Insulation Machine also have Airless Spray Equipment ,small excavator , Road Construction Machinery , Packing Machine ,snack machine .,chemical material, air polisher.


Parameter of Handheld Percussion Mining Rock Drilling Machine


Model: Y20
N.W: 20 Kg
Length: 561 mm

Air Pressure: 0.4-0.63 Mpa

Impact Frequency:  ≥33 Hz

Air Consumption: ≤33 L/S

Impact Energy:  ≥26 J

Cylinder * Stroke: 63 mm*55 mm

Air Pipe Inner Diameter: 19 mm

Shank Dimension: 22*108 mm

Drilling Depth: 3 m
Bit Diameter: 34-40 mm

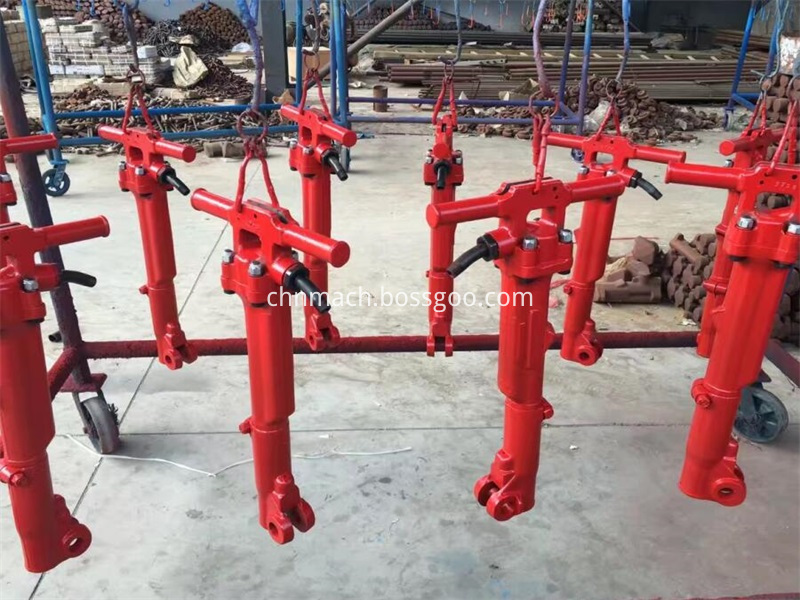

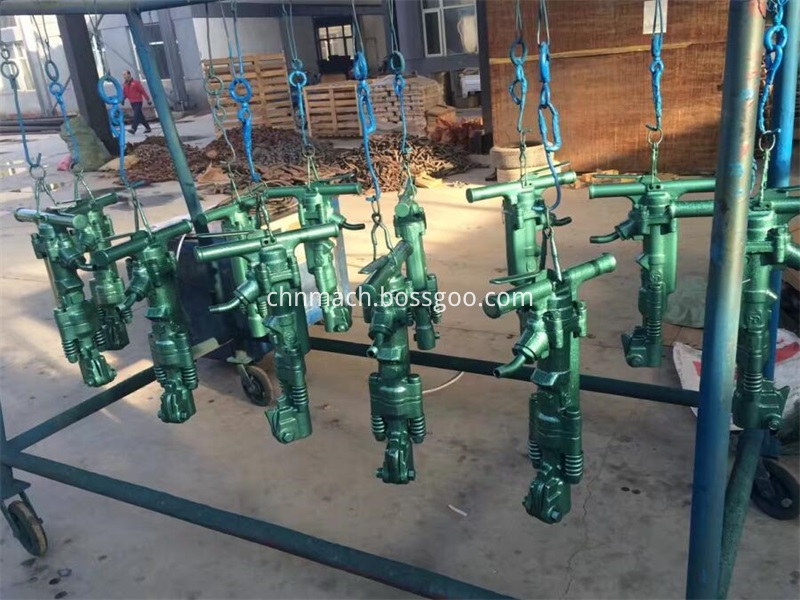

Images of Handheld Percussion Mining Rock Drilling Machine
