High pressure pneumatic PU polyurethane spray foam machine

Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF,FCA
Min. Order: 1 Set/Sets
Delivery Time: 7 Days

Basic Info

Model No.: CNMC-E

Type: Polyurethane Foam Machine

Principle: High-Pressure Air Type

Automation: Automatic

Computerized: Computerized

Certification: CE

Product Name: High Pressure Pneumatic PU Polyurethane Spray Foam Machine

Voltage: 220V 50Hz

Power(KW): 7.5KW

Driven Mode: Pneumatic

Air Source: 0.5~0.8 MPa ≥0.9m 3 /min

Raw Output: 2~12 Kg/min

Maximum Output Pressure: 11Mpa

Material: ISO&POLY

AB Material Output Ratio: 1:1

Application: Walls, Cold Storage, Roof, Insulation Tanks, Road Construction

Additional Info

Packaging: Wooden case

Productivity: 5000 sets/Month

Brand: CNMC

Transportation: Ocean,Air

Place of Origin: Shandong China

Supply Ability: 5000 sets/Month

Certificate: CE

HS Code: 8422489990

Port: Qingdao,Shanghai,Ningbo

Product Description

High pressure pneumatic PU polyurethane spray foam machine

Parameter - High pressure polyurethane spray foam machine

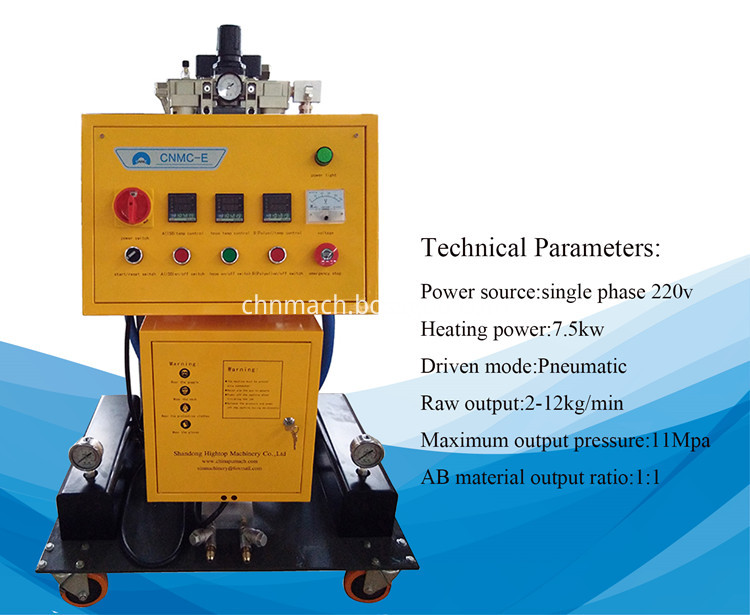

Technical Parameters
Model CNMC-E
Power source Single phase 220V 50Hz
Heating powe 7.5KW
Driven mode Pneumatic
Air source 0.5~0.8 MPa ≥0.9m³/min
Raw output 2~12 kg/min
Maximum output pressure 11MPA
AB material output ratio 1:1
Packing size 750mm X 560mm X 1130mm
Machine weight 109KG
Standard Matching Tools
Spray gun 1 set
Feeding pump 2 sets
Heating hose 15meters
Gun connection pipe 2pieces
Feed delivery pipe 2pieces
pneumatic  pipe 5meters
Spare parts 1set

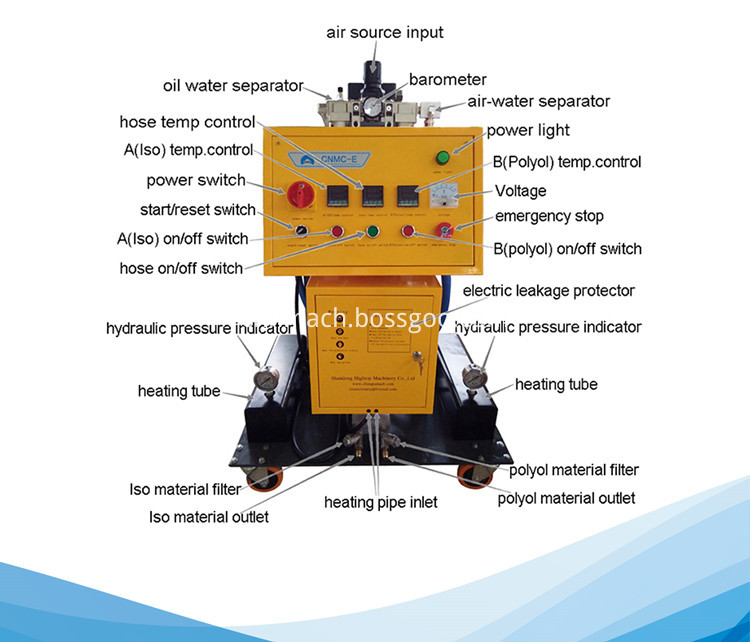

 Features - High pressure polyurethane spray foam machine

1. Stable cylinder supercharged unit, easily providing adequate working pressure;



2. Small volume, light weight, low failure rate, simple operation, easy mobility;



3. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;



4. Minimizing spraying congestion with 4-layers-feedstock device;



5. Multi-leakage protection system to protect the safety of the operator;



6. Equipped with emergency switch system, help operator deal with emergencies rapidly;



7. Digital counting system can understand original consumption timely;



8. Reliable & powerful 220V heating system enables rapid warming of raw materials to the best state, making sure it works great in cold condition;



9. Humanized design with equipment operation panel, super easy to get the hang of it;



10. Feed pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.



11. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;

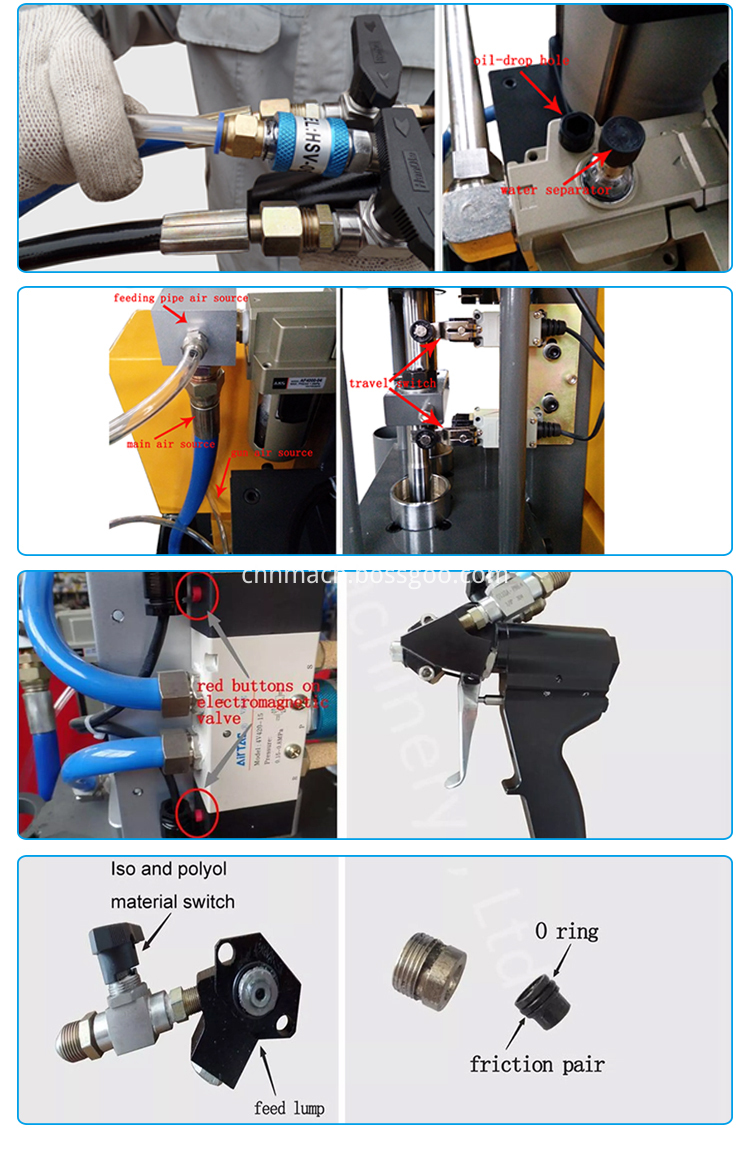

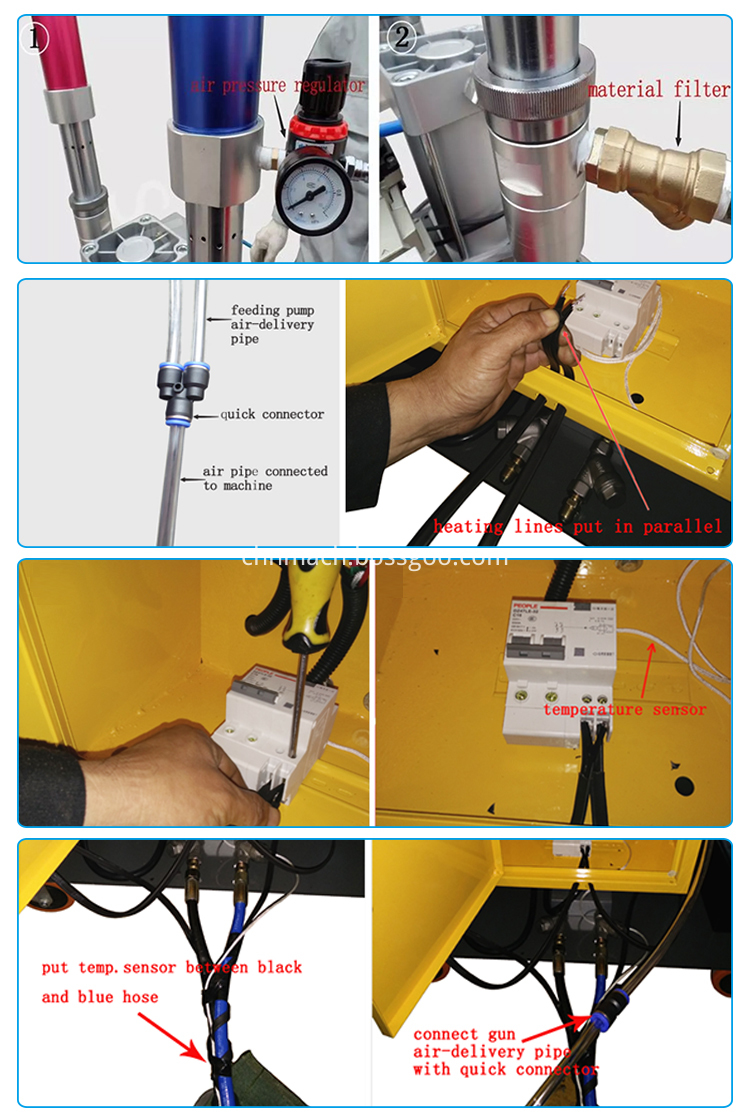

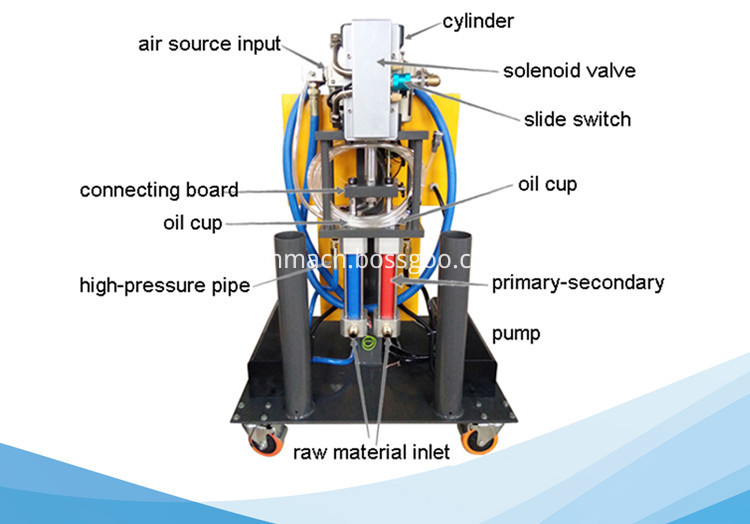

photobank (2)

photobank

photobank (1)



01

02

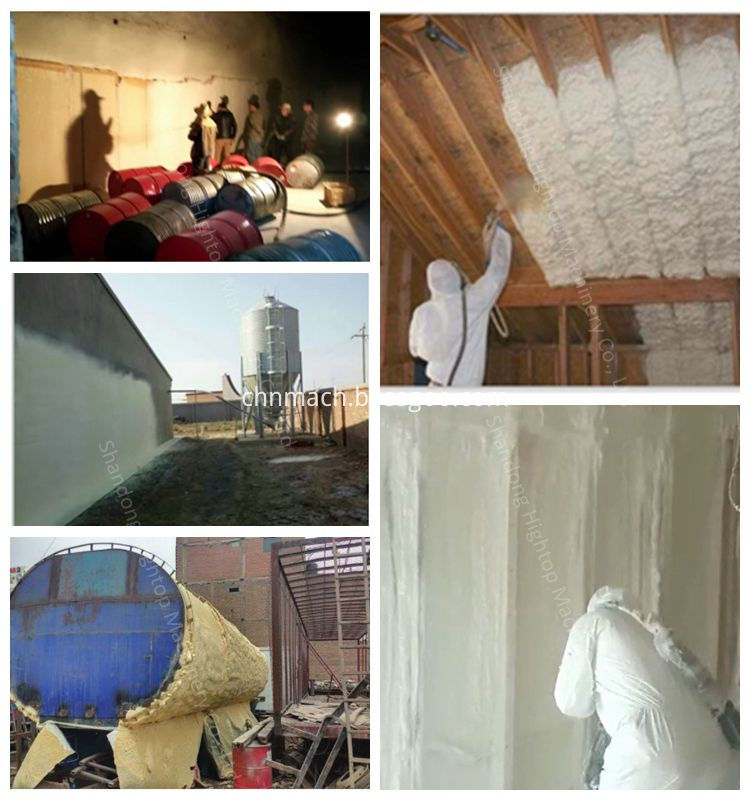

Application

Polyurethane high pressure airless spray casting foam system for a wide range.



Polyurethane spray: the construction of the external walls of spraying, spraying products, cold storage spray, refrigerated trucks spraying, roof spraying, industrial anti-corrosion, cabin, carriages, cars, tanks,



Polyurethane casting: solar water heaters, insulation tanks, refrigerators, security doors, cabin, insulation boards, pipe joints, product packaging, road construction, wall noise.

application

After-sales service

1. 24 hours on line service, support Chinese, English, Spanish, French, German, Russian ,technical guidance.



2. When meets machine failure problem, our factory will ensure that the problem is solved within 1 hour.



3. Povide machine install video.



4. Provide logistics information, like shipping by sea, shipping by express DHL, FEDEX delivery, real-time tracking service.



5. If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided.

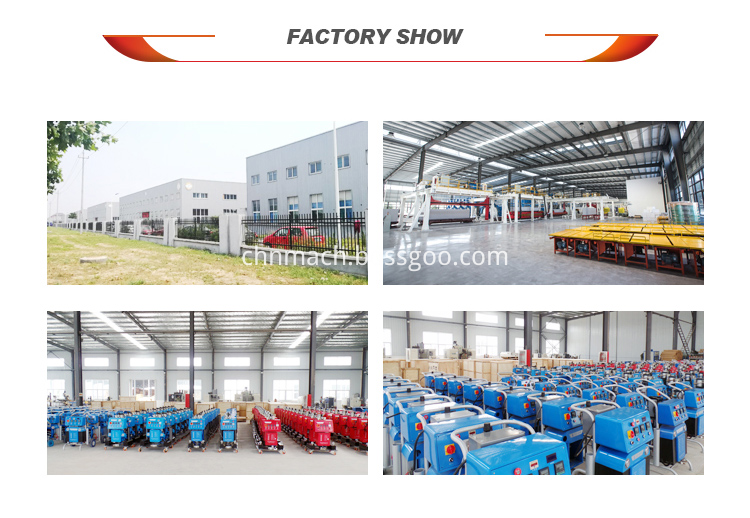

Company Information

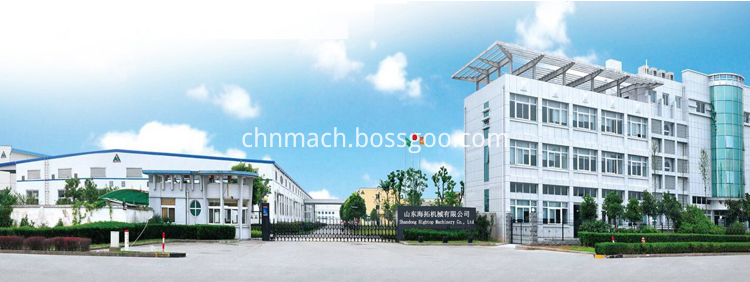

company-1

SHANDONG HIGHTOP MACHINERY Co., Ltd, established in 1980, is an important and a large construction engineering equipment joint-stock enterprise group. It has several wholly-owned subsidiaries, company headquarters is located at National High Tech Zone, Jining City, Shandong province.



Group's manufacturing area is compromised of 5000 square meters where 2000 people are employed full-timely. Its service scope covers critical economic fields such as construction engineering equipment, mining machinery, rock drilling equipment, steel etc.



CNMC Group got ISO9001 international quality system certification, European Union CE certification,SGS certification and Russian GOST certification. Scientific innovation is CNMC motive power. At 2000 year Our company and China Science and Technology University together established a steel products Rally testing laboratories, strive to enhance the product's impact resistance, in 2002 year the company and Shanghai Institute of Chemical Research jointly established experimental research center for the Chemical Material. Through exchanges and learn, CNMC mechanical, products in the stability of performance has been greatly improved.



More than 30 years of hard work and struggle, CNMC products have been exported to more than 127countries, and win good reputation from our customers, because we always pursue "CNMC FOCUS ONQUALITY" and explored a sustainable development path which combining the economic benefits and environmental protection together, and this make a great contribution to the development of Chinese machinery manufacturing industry and prosperity.

company-2

company-3

company-4

company-5
