Pneumatic Rock Drilling And Blasting Equipment

Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF,FCA
Min. Order: 1 Set/Sets
Delivery Time: 5 Days

Basic Info

Model No.: YT24

Structure: Horizontal Drilling Machine

Layout: Horizontal

Controlling Mode: Artificial

Number of Shaft: 3

Hole Diameter: <50mm

Automatic Grade: Semiautomatic

Precision: Normal Precision

Certification: CE, ISO 9001

Condition: New

Color: Blue

Additional Info

Packaging: Carton Box

Productivity: 10000 Sets/Month

Brand: CNMC

Transportation: Ocean,Land,Air

Place of Origin: Shandong

Supply Ability: 10000 Sets/Month

Certificate: CE

HS Code: 81671900

Port: Qingdao,Shanghai,Ningbo

Product Description

Introduction of Pneumatic Rock Drilling And Blasting Equipment

The pusher leg rock drill YT24 is a highly efficient jack hammer that combines air water linkage system, quick leg retraction mechanism, air pressure adjustment system and other high quality components together to offer reliable performance with simple operation. Thanks to the equipped muffler, our pneumatic drill could cut down noise level effectively to protect people`s ears, and it also boasts light weight, big torque, high efficiency, simple structure and easy maintenance.

Shandong Hightop Machinery Co., Ltd is the leader in polyurethane technology . Our company is mainly in engaged in Spray Foam Machine, Polyurethane Foaming Machine, Spray Foam Equipment, Spray Foam Insulation Machine also have Airless Spray Equipment ,small excavator , Road Construction Machinery , Packing Machine ,snack machine .,chemical material, air polisher.

Our pusher leg rock drill delivers satisfying performance even under low air pressure conditions, making it particularly suitable to work with small air compressors or where the air hose to be quite long.


Parameter of Pneumatic Rock Drilling And Blasting Equipment


Model: YT24
N.W: 24 Kg
Length: 678 mm
Cylinder Diameter: 70 mm
Piston Stroke: 70 mm
Working Pressure: 0.4~0.63 Mpa
Impact Energy:  ≥65 J
Impact Frequency:  ≥31 Hz
Air Consumption:  ≤66.7 L/S

Air Pipe Inner Diameter: 19 mm

Water Pipe Inner Diameter: 13 mm
Rock Drill Hole Diameter: 34~42mm
Rock Drill Hole Depth:  5m
Shank Size:  22×108 mm

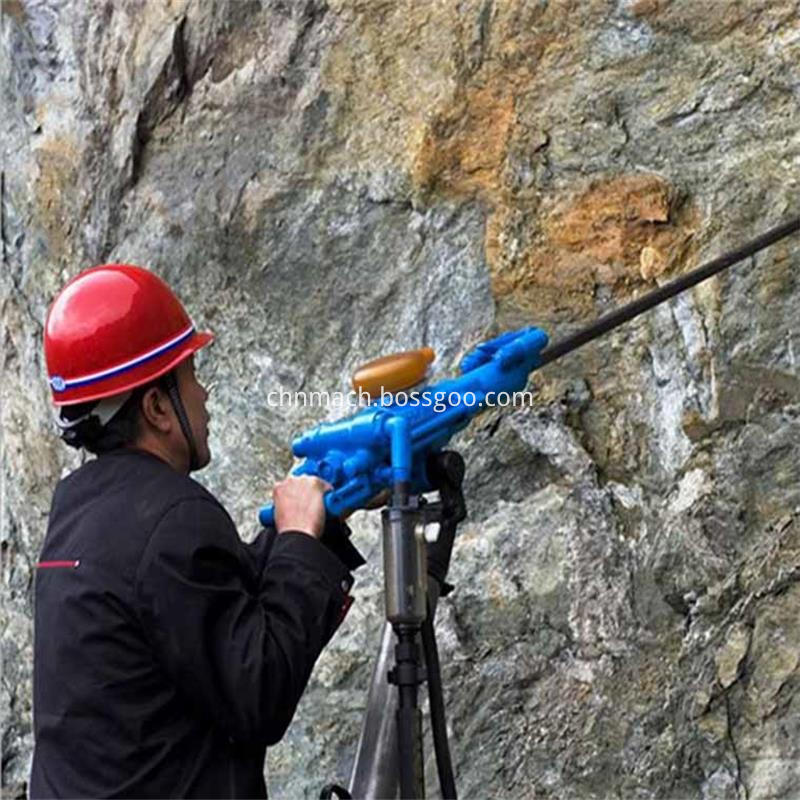

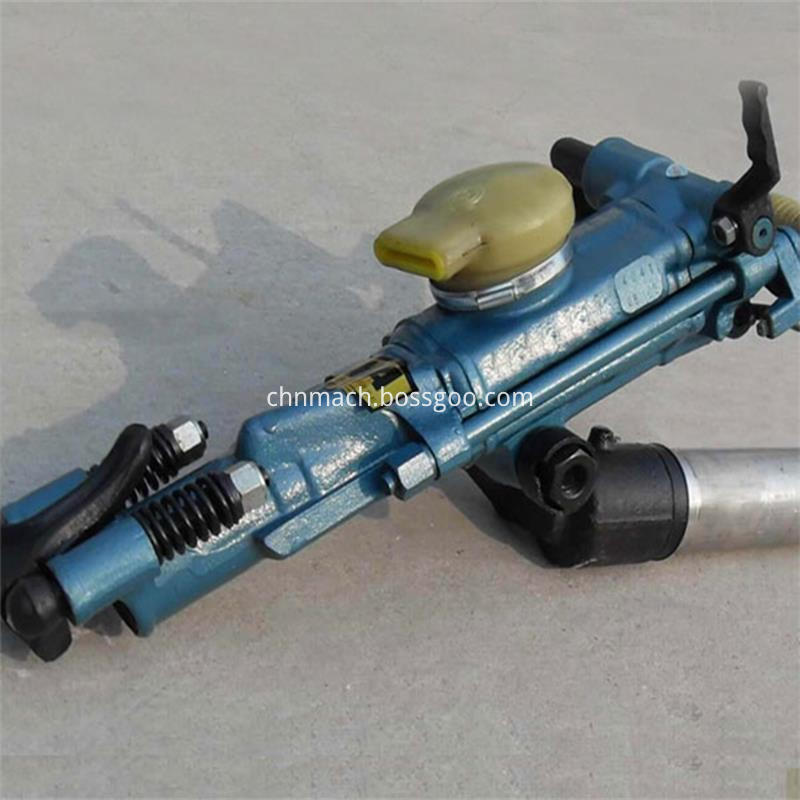

Images of Pneumatic Rock Drilling And Blasting Equipment

Mining Drilling EquipmentRock Drilling And BlastingPneumatic Air Leg Rock DrillPneumatic Pick Spare Parts
