Pu Waterproof Hydraulic Polyurea Spray Foam Machine

Payment Type: L/C,T/T,Paypal,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 7 Days

Basic Info

Model No.: CNMC500

Type: Polyurethane Foam Machine

Raw Material: Mixing

Principle: High-Pressure Air Type

Automation: Automatic

Computerized: Computerized

Certification: CE, ISO9001:2008

Additional Info

Packaging: wooden box

Productivity: 5000 sets/Month

Brand: CNMC

Transportation: Ocean,Land,Air

Place of Origin: Shandong China

Supply Ability: 5000 sets/Month

Certificate: CE

HS Code: 8422489990

Port: Qingdao,Shanghai,Ningbo

Product Description

Introduction of  Polyurea Waterproof Spray Machine

1. The machine has a small size, light weight, low failure rate, simple operation, easy to move and so on.

2. Use the most advanced pneumatic booster devices, the maximum degree to ensure stability of equipment work.

3. Multiple raw material filter device to minimize the spray plug problem.

4. Multiple leakage protection system to protect the safety of the operator.

5. With an emergency switch system, to the most rapid response to emergencies.

6. Reliable and powerful heating system can make the raw material rapidly heating to the ideal state, to meet the normal construction of equipment.

7. The feeding volume can be adjusted, and has a regular, quantitative function, especially suitable for high-precision small batch of polyurethane casting to improve production efficiency.

8. The latest no-clean spray gun with small size, light weight, low failure rate.

9. Material taken pump use large ratio method, automatic mention material, high viscosity of winter raw materials can also easily feed.

Parameter of  Polyurea Waterproof Spray Machine

Item Polyurethane spray machine.



Proportion Fixed Mainframe: 1 set
Self-cleaning spray gun: 1 set
Feeding pump: 2 sets
Heating hose: 49.2 feet (15m)
Connecting hose from feeding pump to machine: 10 feet(3m)
Connecting hose from heating hose to gun: 5 feet(1.5m)
Rings and Tools
Technical Data The ratio of raw material: 1:1(Fixed)
The viscosity range of raw material: 200-1000CPS (Under the operate temperature)
Max Working pressure: 25 MPa (200 bar)
Max fluid temperature: 88°C (190°F)
Max Output: 14kg/min (30 lb/min)
Heating hose power: 2000W*2
Max hose length: 94m (308 feet)
Whole power: 17KW
Voltage: 380V/400V 3-ph
Operate temperature: 0°C-70°C
Clean mode Self-clean by air
Max heating hose length: 308 feet (94m)
Working fluid pressure: 6-8Mpa
Machine size: 1400mm*990mm*60mm
Gross weight: 240KG

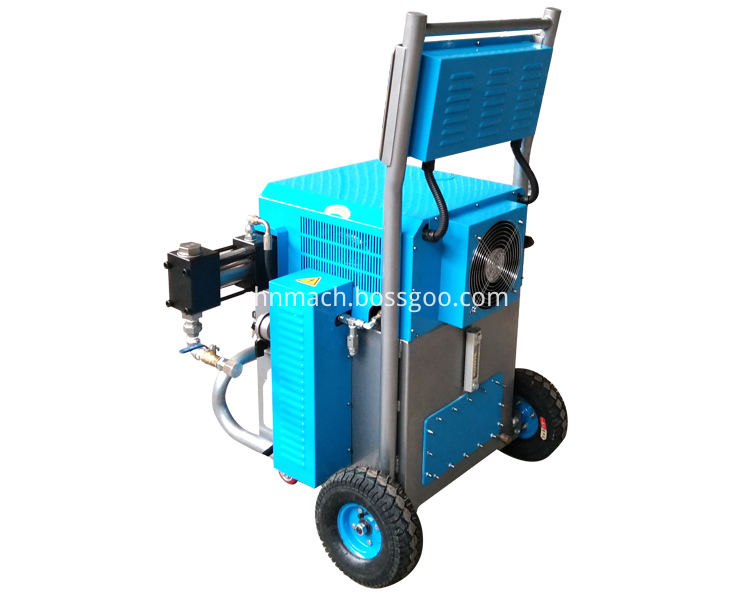

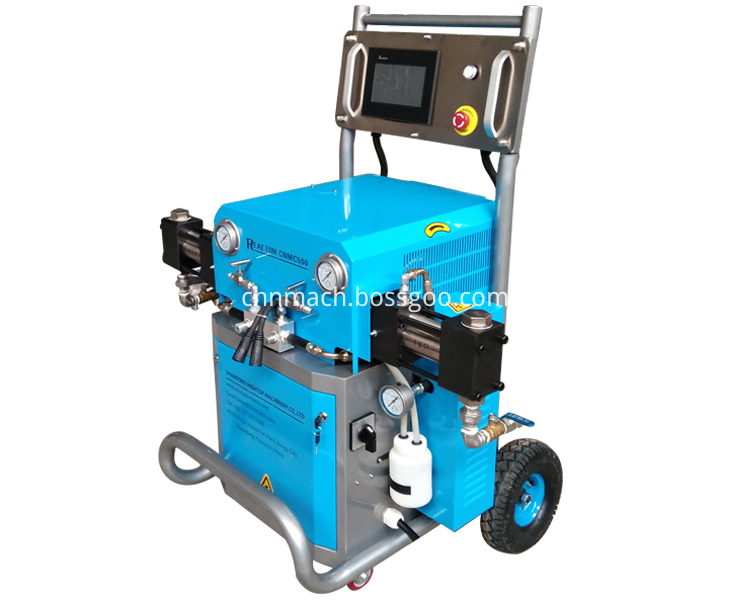

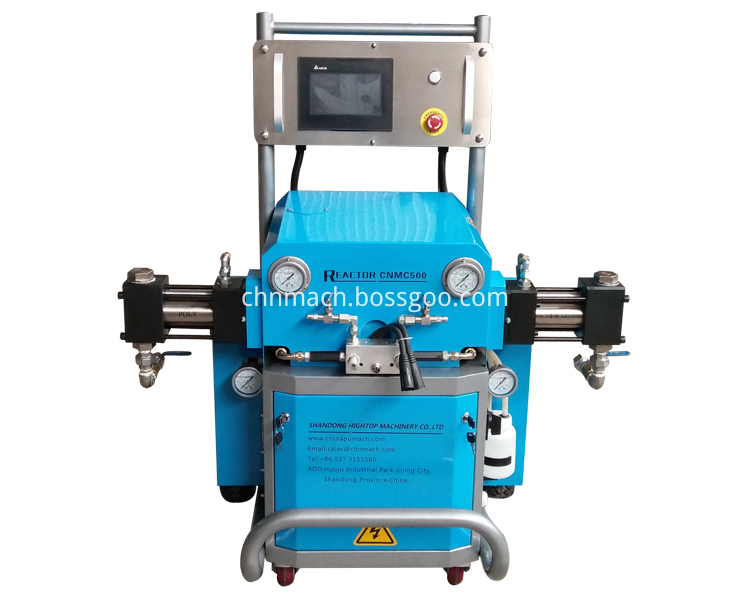

Images of  Polyurea Waterproof Spray Machine
