polyurethane filling machine for sandwich insulation panel

Basic Info

Model No.: CNMC220C

Type: Polyurethane Foam Machine

Raw Material: Mixing

Principle: High-Pressure Air Type

Automation: Automatic

Computerized: Computerized

Certification: CE, ISO9001:2008

Additional Info

Packaging: wooden box

Productivity: 5000 sets/Month

Brand: CNMC

Transportation: Ocean,Land,Air

Place of Origin: Shandong China

Supply Ability: 5000 sets/Month

Certificate: CE

HS Code: 8422489990

Port: Qingdao,Shanghai,Ningbo

Product Description

Introduction of High Pressure polyurethane filling machine for sandwich insulation panel

The Polyurethane Injection Foam Machine is Suitable for production of polyurethane pillow ,steering wheel ,bumper ,self-skin ,high resilience ,slow rebound ,toys ,fitness equipment ,insulation layer ,bicycle cushion ,rigid foam ,cold storage panel ,medical equipment,elastomer ,shoe sole ect.So the Polyurethane Foam Making Machine is widely used in many sectors .

Three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving;
Adding material sample test system, which can be switched freely without affecting normal production, saving time and material;
Low speed and high precision metering pump, accurate ratio, random error within ±0.5%;
Material flow rate and pressure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting;
High-performance mix device, accurately synchronous material output, even mixture. New leakproof structure, cold water cycle interface reserved to ensure no blockage during long downtime.
Adopting PLC and touch screen man-machine interface to control injection, automatic cleaning and air purge, stable performance, high operability, automatically distinguish,diagnose and alarm abnormal situation, display abnormal factors.

Parameter of High Pressure polyurethane filling machine for sandwich insulation panel

Technical Parameter:

Injection output: 2-1000g/s
Material tank volume: 30L-120L

Mixing ratio range: 100:28~48
Mixing head: 2800-5000rpm, forced dynamic mixing

Compressed air needed: dry, oil free,  P:0.6-0.8MPa Q:600NL/min(customer-owned)

Nitrogen requirement: P:0.05MPa Q:600NL/min(customer-owned)

Temperature control system: heat:2×3KW
Input power: three-phase five-wire 380V 50HZ Other power customizable
Rated power:8KW-12KW

Color( customizable): White/Red/Blue
Weight: 600Kg-1200Kg

Dimension: 4100(L)*1250(W)*2300(H)mm

Images of High Pressure polyurethane filling machine for sandwich insulation panel

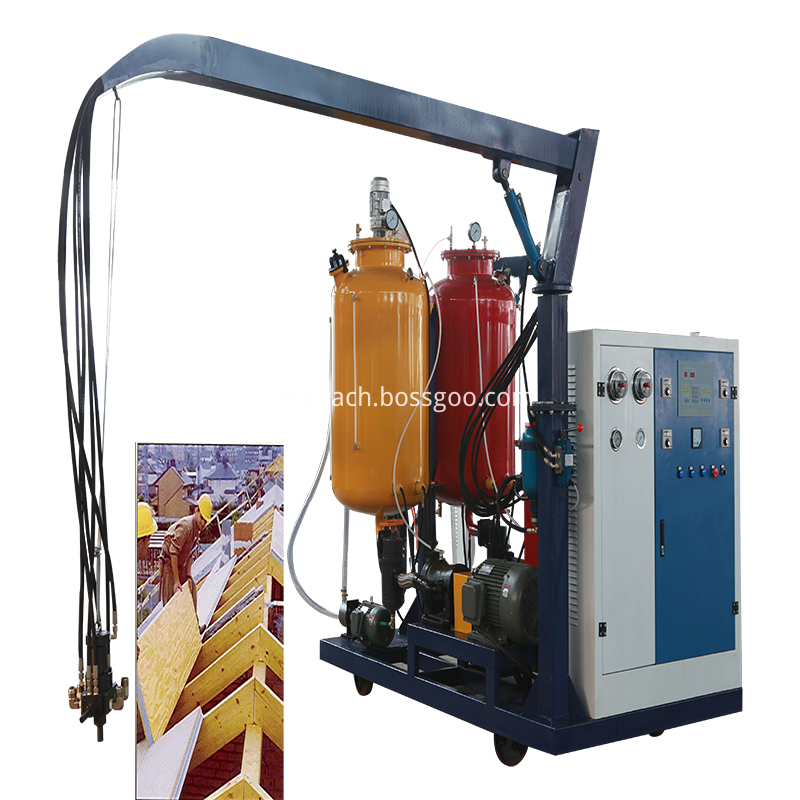

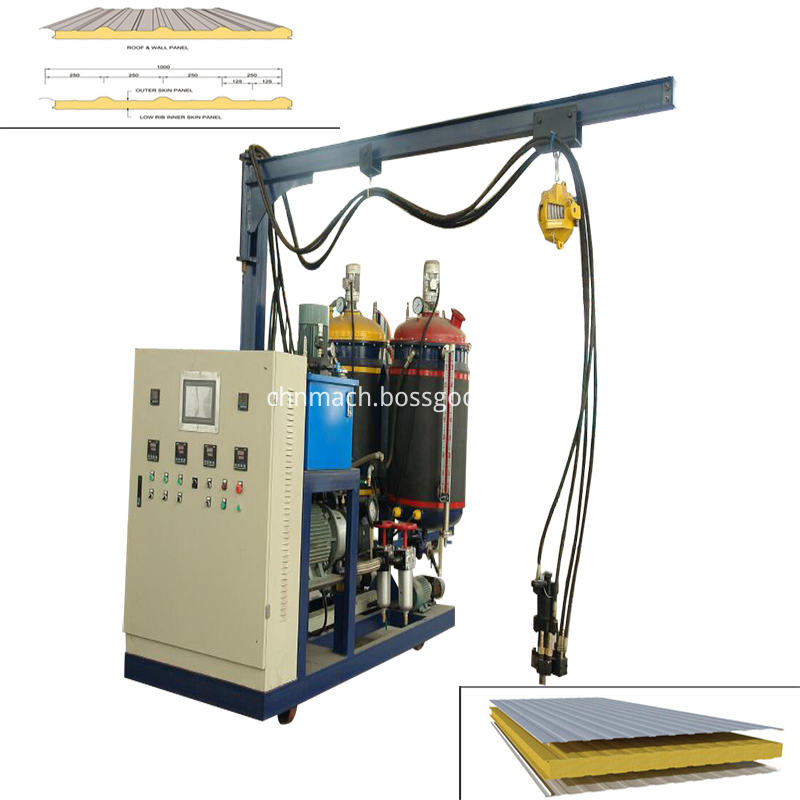

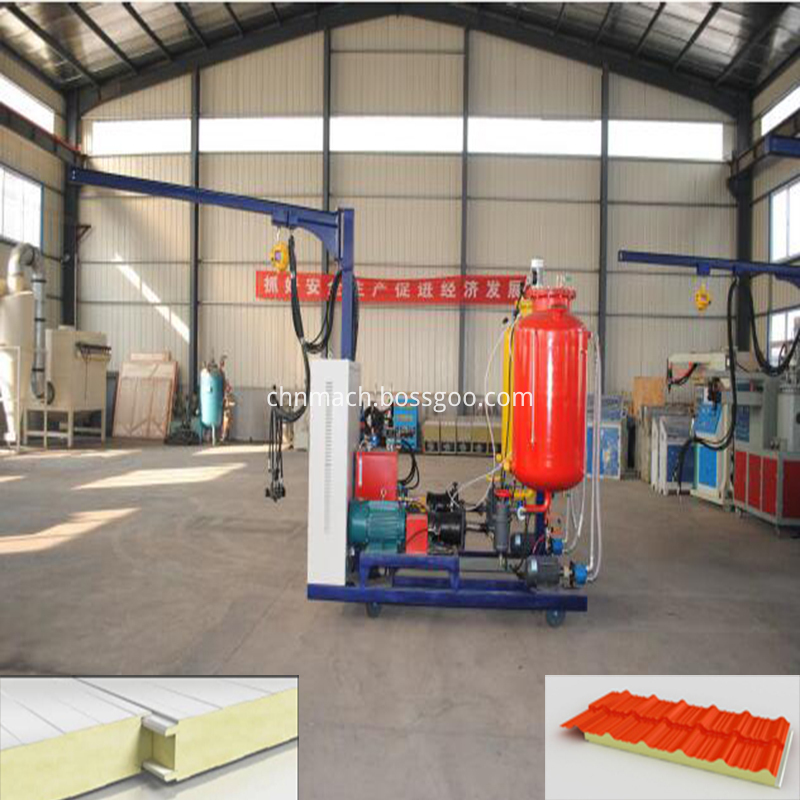

The photo show of the Polyurethane Foam Machine
