Hydraulic Insulation polyurethane spray foam machine

Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF,FCA
Min. Order: 1 Set/Sets
Delivery Time: 7 Days

Additional Info

Packaging: wooden box

Productivity: 5000 sets/Month

Brand: CNMC

Transportation: Ocean,Land,Air

Place of Origin: Shandong China

Supply Ability: 5000 sets/Month

Certificate: CE

HS Code: 8422489990

Port: Qingdao,Shanghai,Ningbo

Product Description

Parameter of polyurea spraying foam machine

1) For various shapes of substrates, whether it is flat, façade or top surface, whether it is a circular, spherical or other irregularly shaped complex object, spray foaming can be directly carried out without expensive mold manufacturing. cost;
(2) The shape of the foamed foam insulation layer is consistent with the shape of the substrate; no joints, good thermal insulation effect; a dense protective skin layer on the outside of the foam layer, which can better protect the inner core material, and is also easy Coating and further repairing the outer surface of the paint;
(3) High production efficiency, especially suitable for the heat treatment of large-area and irregular-shaped objects, fast forming speed and high production efficiency.
(4) Adhesive force: strong bonding ability, can be firmly bonded on the surface of concrete, masonry, wood, steel, asphalt, rubber, etc.;
(5) Thermal conductivity: it can reach 0.017-0.022W/m.k, which is lower than building thermal insulation materials such as rock wool, glass wool, polystyrene board and extruded board;
(6) Water-repellent performance: the drowning rate is over 95%;

Shandong Hightop Machinery Co., Ltd is the leader in polyurethane technology . Our company is mainly in engaged in Spray Foam Machine, Polyurethane Foaming Machine, Spray Foam Equipment, Spray Foam Insulation Machine also have Airless Spray Equipment ,small excavator , Road Construction Machinery , Packing Machine ,snack machine .,chemical material, air polisher.


Technical Parameters: Polyurethane Spray Foam Machine


Model number :CNMC-58

Power source: single phase 220V 50Hz

Heating power: 7.5KW

Driven mode: hydraulic

Air source: 0.5~0.8 MPa ≥0.9m³/min

Raw output: 2~12 kg/min

Maximum output pressure: 11Mpa

AB material output ratio: 1:1


Introduction of Polyurethane Foam Spray Equipment Machine

Polyurethane Spray Insulation Machine

Features:

Pu Foaming Machine,Polyurethane Foam Insulation


1. Stable cylinder supercharged unit, easily providing adequate working pressure;

2. Small volume, light weight, low failure rate, simple operation, easy mobility;

3. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

4. Minimizing spraying congestion with 4-layers-feedstock device;

5. Multi-leakage protection system to protect the safety of the operator;

6. Equipped with emergency switch system, help operator deal with emergencies rapidly;

7. Digital counting system can understand original consumption timely;

8. Reliable & powerful 220V heating system enables rapid warming of raw materials to the best state, making sure it works great in cold condition;

9. Humanized design with equipment operation panel, super easy to get the hang of it;

10. Feed pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.

11. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;

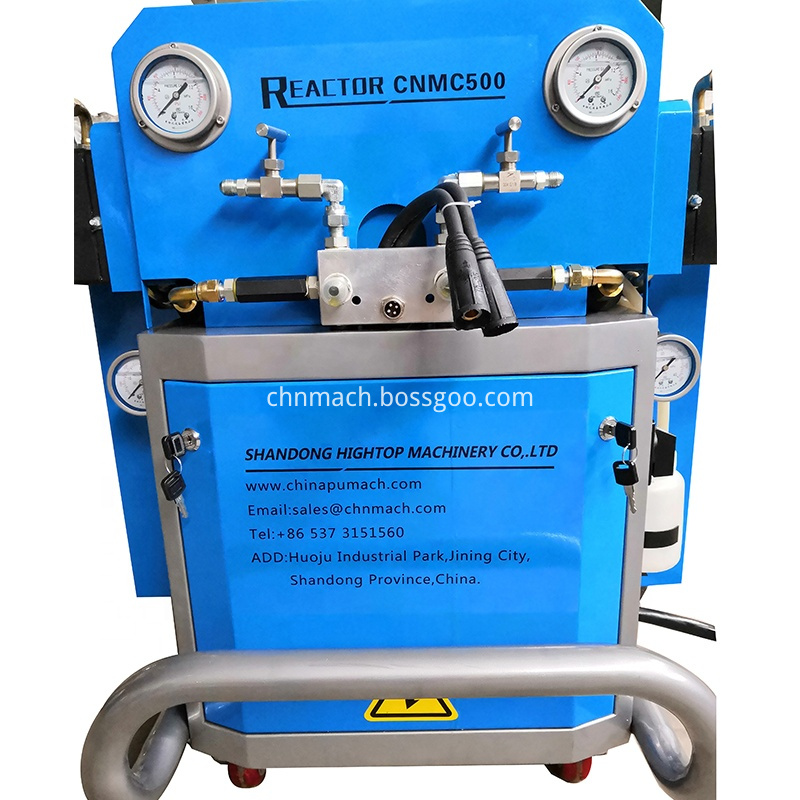

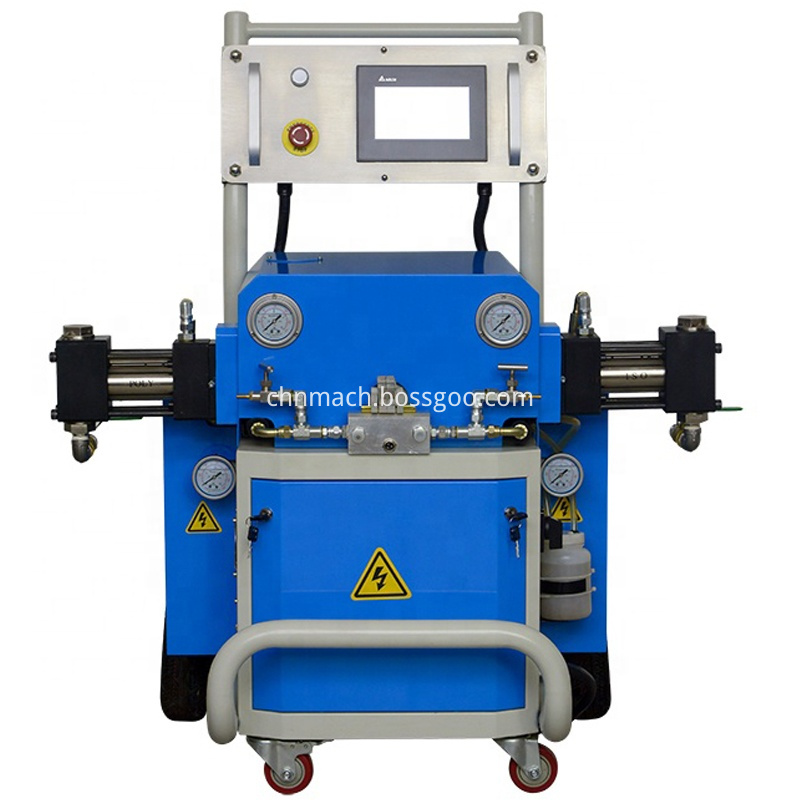

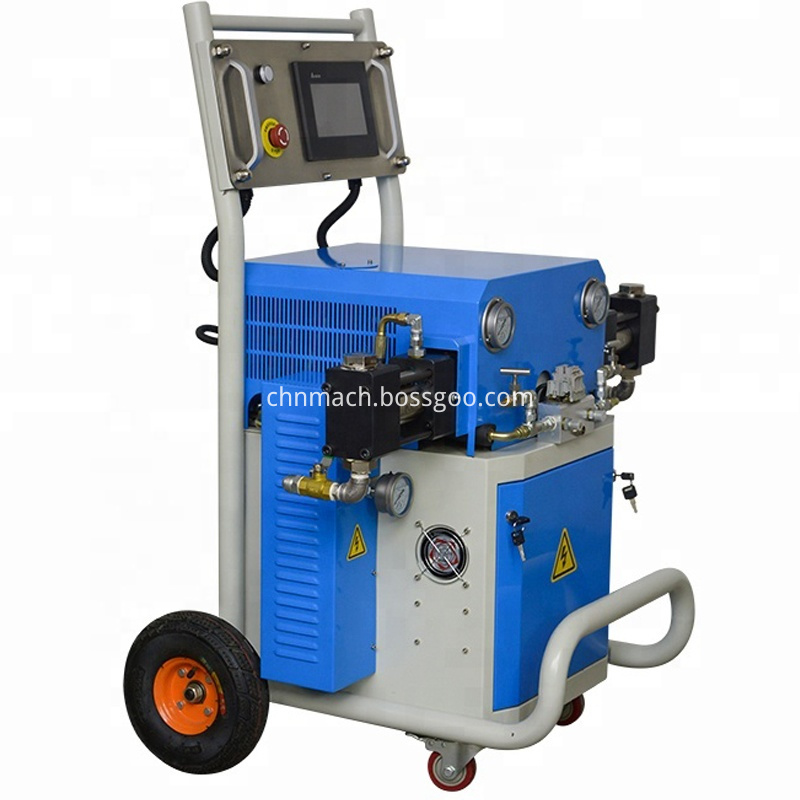

Images of Polyurethane Foam Spray Equipment Machine

Photobank

Photobank 2

Photobank 4


About Us

China Machinery Co. ,Ltd (CNMC), established in 1980, is an important and a large construction engineering equipment joint-stock enterprise Group of Shandong province, It has several wholly-owned subsidiaries, company headquarters is located at Jining Shandong province.
We have CE Certificate,SGS Product Certificate, ISO9000 Quality Control Certificate and BV Supplier Certificate, Our machine had win much good reputation through its quality and nice performance. Nowadays Our products have been exported to 127 countries and regions over the world.
