11KW 380V Polyurethane Foam Injection Machine

Payment Type: T/T,Paypal
Incoterm: FOB,CFR,CIF
Min. Order: 1 Bag/Bags
Delivery Time: within 10 working days Days

Basic Info

Model No.: CNMC-26(D15)

Additional Info

Packaging: wooden case

Productivity: 20 sets a month

Brand: CNMC

Transportation: Ocean,Air

Place of Origin: China

Certificate: CE ISO

Port: Qingdao,Shanghai

Product Description

11KW 380V Polyurethane Foam Injection Machine

Introduction of 11KW 380V Polyurethane Foam Injection Machine

Equipment applications For Polyurethane Foam Injection Machine

1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks,tank, etc.

2. Casting: solar water heaters,tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.

Our company is mainly in engaged in Polyurethane Injection Foam Machine,Polyurethane Foam Making Machine,Polyurethane Foam Machine,Polyurethane Foam Spray Equipment  also have airless spray equipment ,small excavator , road construction machinery , packing machine ,snack machine .,chemical material, air polisher. Polyurethane Foam Injection Machine with 380v three phase .11kw heating power .


1.Polyurethane Coated Machine  secondary pressurized device to ensure fixed material proportion of equipment, improve product yield;

2.the machine Polyurethane foam making machine with small volume, light weight, low failure rate, easy operation and other great features;

3. Feed rate can be adjusted,have time-set,quantity-set features, suitable for batch casting, improve production efficiency;

4. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

5. Minimizing spraying congestion with multi-feedstock device;

6. Multi-leakage protection system to protect the safety of the operator;

7. Equipped with emergency switch system, help operator deal with emergencies rapidly;

8. Humanized design with equipment operation panel, super easy to get the hang of it;

9. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;

10. Lifting pump adopts big change ratio method, the winter also can easily feed raw materials high viscosity.

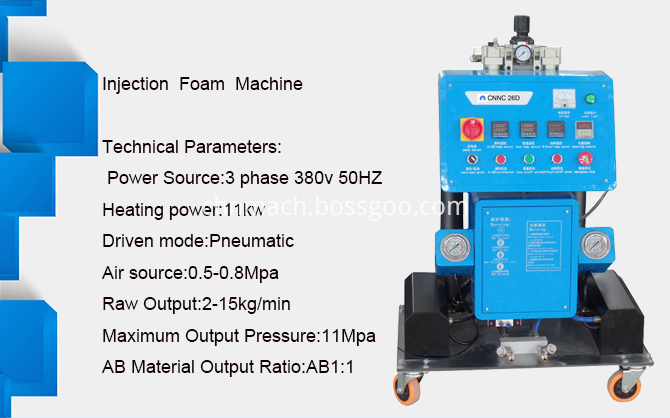

Parameter of 11KW 380V Polyurethane Foam Injection Machine

Power source: three phase 380V 50Hz/ single phase 220V 50Hz

Heating power: 9.5KW

Driven mode: pneumatic

Air source: 0.3~0.8 MPa ≥0.9m3/min

Raw output: 2~12 kg/min

Maximum output pressure: 10Mpa

Heating Temperature: 0-90℃

AB material output ratio: 1:1

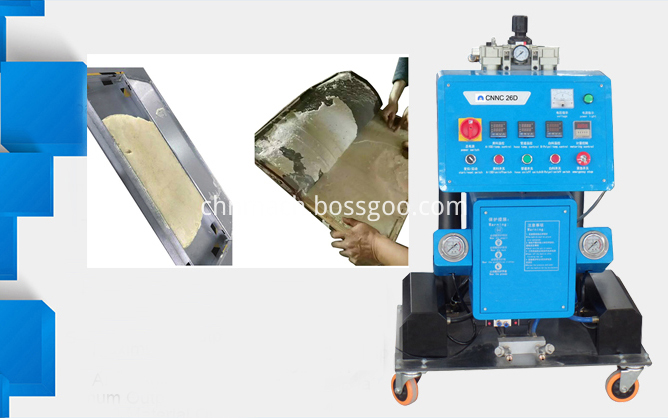

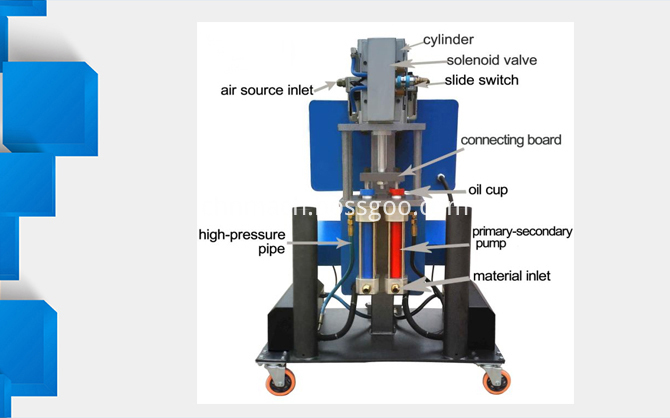

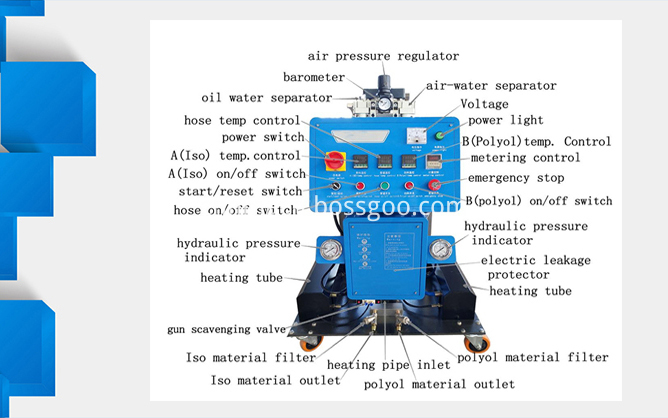

Images of 11KW 380V Polyurethane Foam Injection Machine
