1 Ton Diesel Portable Mini Crane

Unit Price: USD 900.0000 - 1500.0000 / Bag/Bags
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Bag/Bags
Delivery Time: withiin 10 workingdays after received deposit Days

Basic Info

Model No.: CNMC-1T

Additional Info

Packaging: wooden case

Brand: CNMC

Transportation: Ocean,Air

Place of Origin: China

Certificate: CE ISO

Port: Shanghai,Qingdao

Product Description

1 Ton Diesel Portable Mini Crane

Introduction of 1 Ton Diesel Portable Mini Crane

Shandong Hightop Machinery Co., Ltd is the leader in mini crane technology . Our company is mainly in engaged in diesel mini crane also have spray foam machine ,small excavator , Road Construction Machinery , Packing Machine snack machine .,chemical material, air polisher.

Mini Crane is used to lift concrete, cement, sand, bricks, tiles, steel rods and other building material. It is widely used in high rise buildings, water proofing, quarries, building foundations, chemical factories, dam, bridge and well works.


Mini Crane Features

»Portable Mini Crane Lifting Capacity of 150 kg, 300 kg, 500 Kg and 1 Ton

» 1T mini crane Simple Winch Hoist Mechanism

» Diesel mini crane No foundation is required

» Self Balanced with Smart Counter Weight System

»  360 Degree Rotation

» Simple Operation

» Manufactured in Detachable Parts For Portability

» Installed Quickly

Parameter of 1 Ton Diesel Portable Mini Crane

Model

CNMC-1T

Max. Loading capacity

1000kgs

Diesel engine power

air-cooled diesel engine 186F 10HP/6.3kw

Starting way

Recoile

Pressure of Hydraulic motor

10Mpa

Displacement of gear pump

20ml/r

Flow rate of multi-way valve

63L/min

Pressure of multi-way valve

16Mpa

Flow rate of balancing valve

100L/min

Pressure of balancing valve

31.5Mpa

Lifting height

25m

Max. rotation angle

360°

Raising speed

20-40m/min

Gross weight

300kgs

Packing size (L*W*H)

1350*700*800mm

Container Loading plan

50sets/20GP, 160sets/40HC

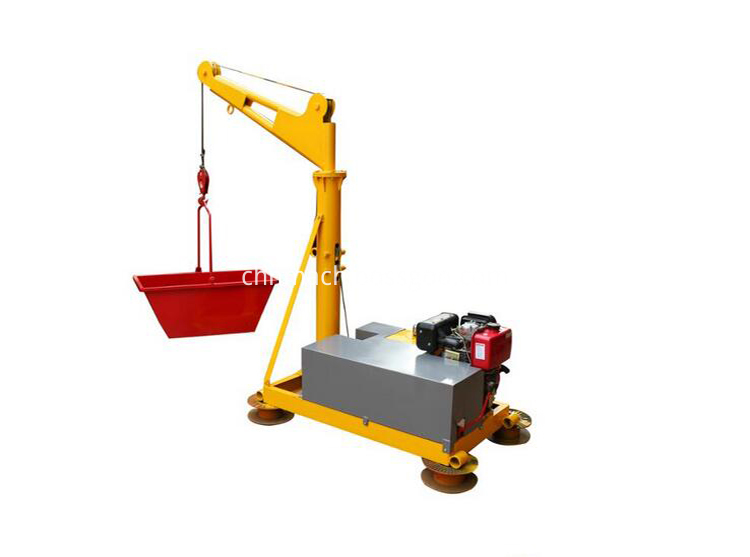

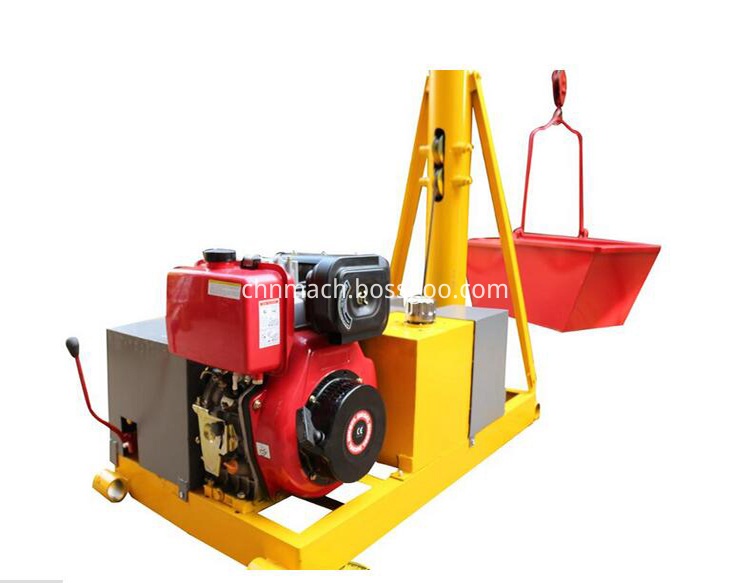

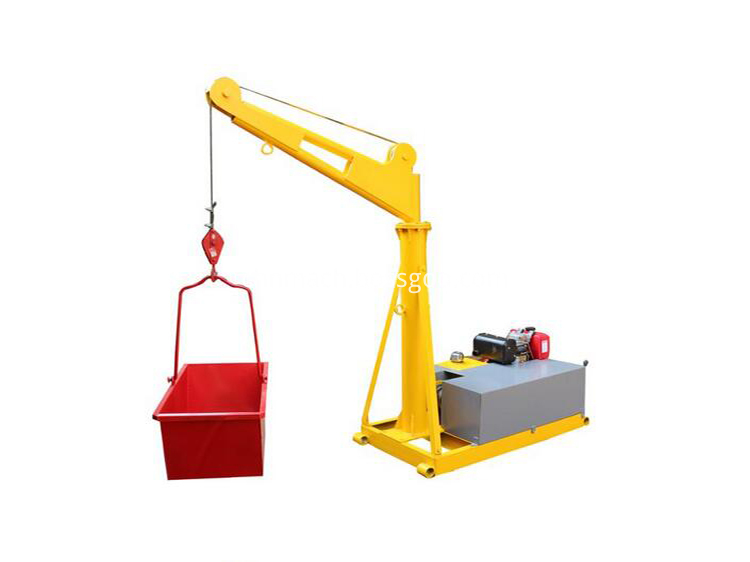

Images of 1 Ton Diesel Portable Mini Crane

1


2

 4

About Us

China Machinery Co. ,Ltd (CNMC), established in 1980, is an important and a large construction engineering equipment joint-stock enterprise Group of Shandong province, It has several wholly-owned subsidiaries, company headquarters is located at Jining Shandong province.
We have CE Certificate,SGS Product Certificate, ISO9000 Quality Control Certificate and BV Supplier Certificate, Our machine had win much good reputation through its quality and nice performance. Nowadays Our products have been exported to 127 countries and regions over the world.

Certificate

1

Our Factory

23

Customers Visit

4

Exhibition

5
